XS Scuba Inspire DIN Connector Kit

Best For

• Converting a compatible XS Scuba Inspire regulator from yoke to DIN
• Replacement of an existing Inspire DIN connector assembly
• Authorized regulator service and repair applications
• Divers who prefer a DIN regulator connection

Not Ideal For

• Regulators other than compatible XS Scuba Inspire models
• Customers looking for an external DIN-to-yoke or yoke-to-DIN adapter
• Installation without appropriate regulator service tools and experience

Key Features

• Inspire-Specific Compatibility: Designed for the XS Scuba Inspire regulator first stage.
• Yoke-to-DIN Conversion: Replaces the regulator's yoke inlet assembly with a DIN connector configuration.
• Complete Connector Assembly: Includes the primary DIN connection components and associated service parts required for the conversion.
• DIN Handwheel: Provides the threaded connection used to secure the regulator first stage to a compatible DIN cylinder valve.
• Protective DIN Cap: Helps protect the DIN connector when the regulator is not attached to a cylinder.
• Service Components Included: Supplied with the filter, O-rings, handwheel retainer, and related components shown in the XS Scuba installation documentation.

Specifications

• Brand: XS Scuba
• Manufacturer Part Number: RP500
• Product Type: DIN Connector / Regulator Conversion Kit
• Compatibility: XS Scuba Inspire Regulator
• Connection Type: DIN
• Application: Regulator First-Stage Yoke-to-DIN Conversion

Compatibility

The RP500 is specifically identified by XS Scuba as the Complete Inspire DIN Connector. It is intended for compatible XS Scuba Inspire regulator first stages. This is not a universal DIN conversion kit and compatibility with other regulator models should not be assumed.

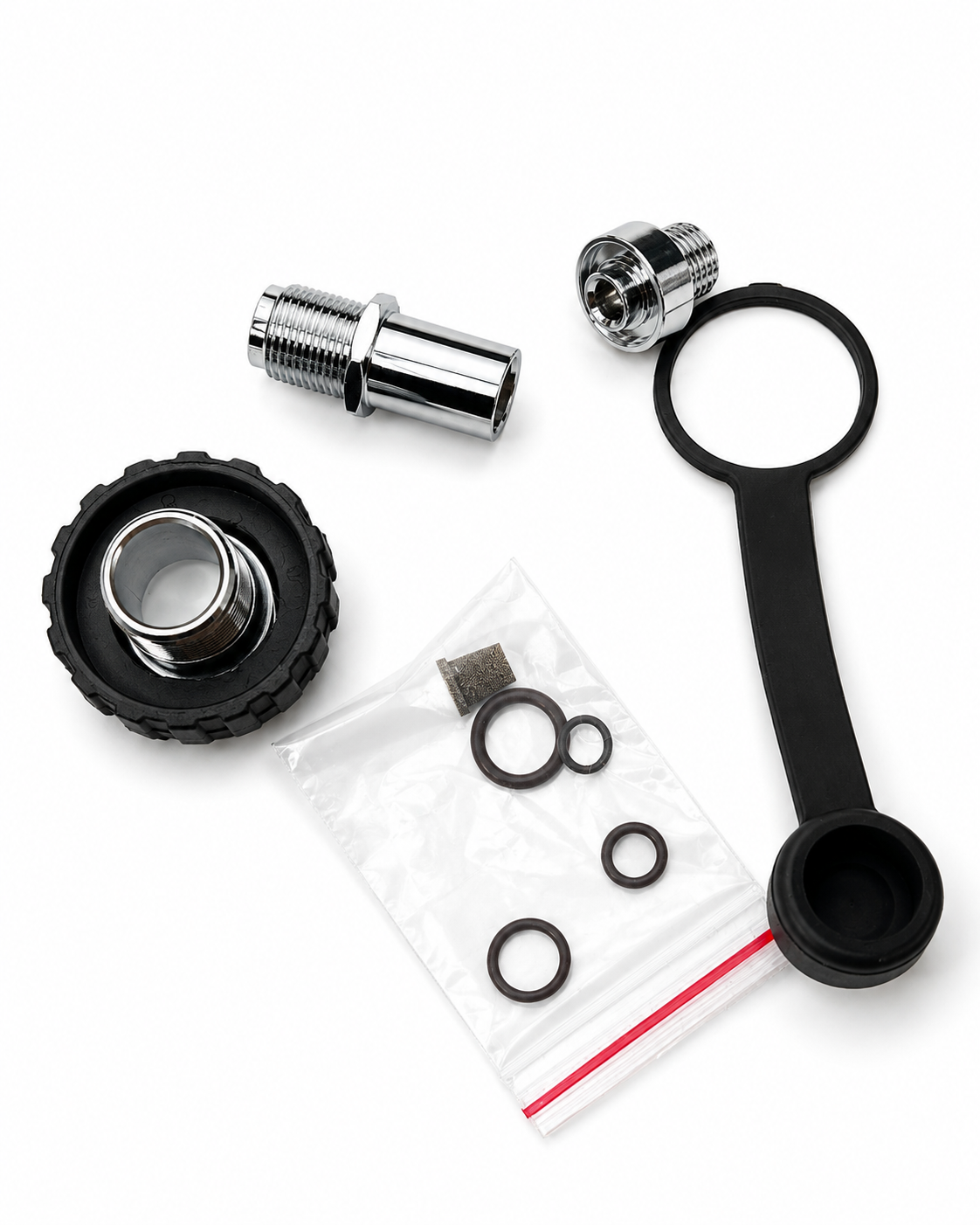

What's Included

• DIN housing
• DIN handwheel
• Handwheel retainer
• DIN filter
• DIN protective cap
• Required O-rings and associated connector components

Not Included

• XS Scuba Inspire regulator first stage
• Original yoke assembly
• Regulator service tools
• DIN cylinder valve or scuba cylinder

Installation Notice

Installation requires disassembly of the regulator's existing yoke assembly and installation of the DIN connector using the procedures and torque specifications provided by XS Scuba. The manufacturer's instructions also require the completed first stage to be pressurized and checked for leaks after installation. Regulator service should be performed by appropriately trained and qualified personnel using the proper tools and service procedures.

FAQs

Does this fit every XS Scuba regulator?
No. The RP500 is specifically identified for the XS Scuba Inspire regulator. Do not assume compatibility with other first-stage models.

Is this an external adapter that screws onto a yoke regulator?
No. This is an internal regulator conversion assembly. The existing yoke inlet assembly is removed and the DIN connector is installed directly onto the compatible Inspire first stage.

Does the Inspire regulator come with this kit?
No. This listing is for the RP500 DIN connector kit only. The regulator first stage is not included.

Can I install this myself?
XS Scuba provides authorized installation procedures that require regulator disassembly, specific tools, controlled torque settings, proper O-ring lubrication, and a post-installation leak test. Installation should be performed by appropriately trained and qualified regulator service personnel.

Expert Insight

The RP500 is the correct type of component for converting a compatible Inspire first stage at the regulator itself rather than adding an external adapter. Because regulator model compatibility and proper installation are critical, verify that your first stage is an XS Scuba Inspire before ordering.
