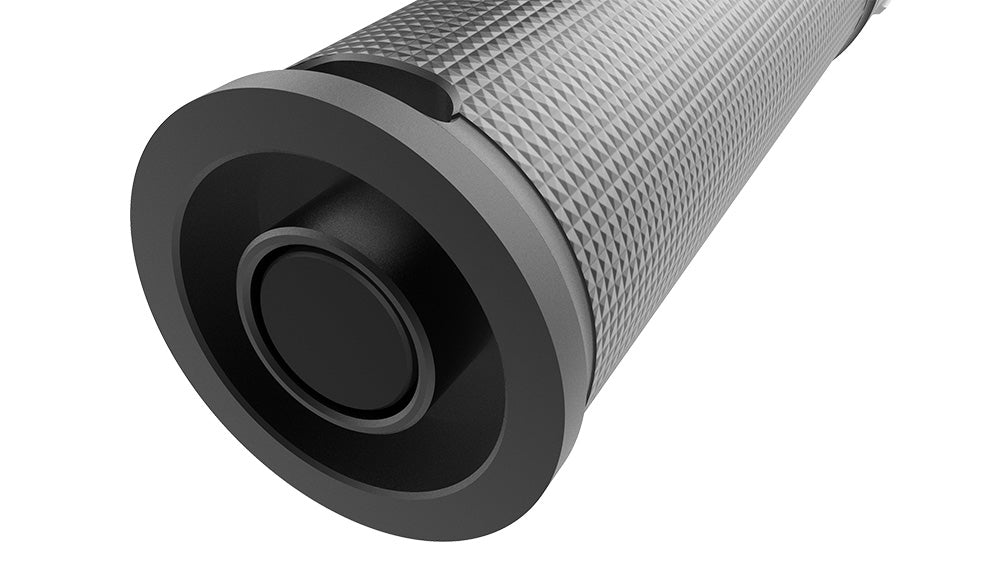

SeaLife Sea Dragon Mini 1600S Rechargeable Dive Light Power Kit

Best For

• Scuba diving
• Night diving
• Primary recreational dive light
• Backup light for advanced diving
• Travel diving
• Inspecting wrecks, reefs, and crevices

Not Ideal For

• Wide-angle underwater photography or videography
• Illuminating large underwater scenes

Key Features

• 1,600 Lumen Output: High-performance Luminus SFT-40 LED delivers powerful, focused illumination.
• Ultra-Narrow Beam: 6° beam angle above water (approximately 4.5° underwater) provides outstanding long-range visibility.
• Five Light Modes: Easily switch between Full (1600 lm), Half (800 lm), Quarter (400 lm), Flash Signal, and SOS Emergency Mode.
• Instant-ON Feature: Optional Instant-ON mode allows immediate activation with a short press of the power button.
• Simple One-Button Operation: Long press powers the light on or off while short presses cycle through lighting modes.
• Rechargeable Battery Included: Includes a protected 3500mAh 18650 lithium-ion rechargeable battery for dependable runtime.
• Battery Status Indicator: Color-coded LED displays Green (Full), Yellow (Medium), and Red (Low Battery).
• Pressure Relief Valve: Integrated safety valve relieves internal pressure caused by a damaged battery.

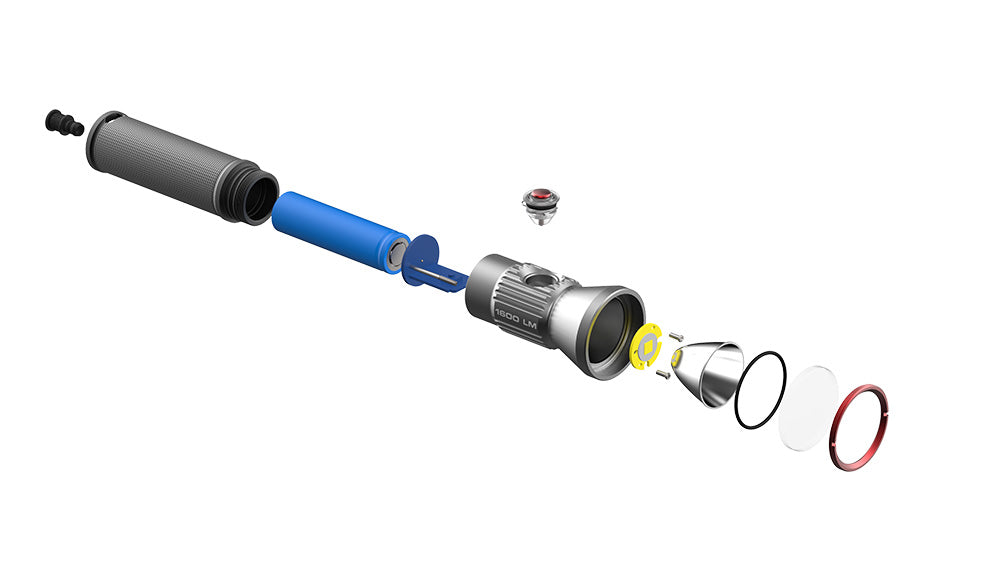

• Rugged Construction: Precision-machined anodized aluminum body with dual silicone O-rings for long-lasting durability.
• Accessory Compatible: Optional SeaLife YS Mount Adapter (SL98104, sold separately) allows use with imaging trays and arms.
• Depth Rated: Tested for use to 330 ft (100 m).

Specifications

• Brand: SeaLife
• Model: Sea Dragon Mini 1600S Rechargeable Dive Light Power Kit
• Manufacturer Part Number: SLKIT13
• UPC: 077068440130
• Maximum Output: 1,600 Lumens
• LED: Luminus SFT-40
• Beam Angle: 6° Above Water / 4.5° Underwater
• Color Temperature: 6000–7000K
• CRI: 70
• Maximum Depth: 330 ft (100 m)
• Battery: One Protected 18650 Lithium-Ion Rechargeable Battery (3500mAh Included)
• Construction: Hard Anodized Aluminum
• Dimensions: 5.5 in × 1.2 in (140 × 30 mm)
• Weight: 5.3 oz (149 g) without battery
• Buoyancy: Negative (-102 g underwater)
• LED Life: Approximately 30,000 Hours

Runtime

• Included 3500mAh Battery:
  • Full Power (1600 lm): Approximately 1 hour
  • Half Power (800 lm): Approximately 2 hours
  • Quarter Power (400 lm): Approximately 4 hours
  • Flash & SOS Modes: 40+ hours
• Optional 4000mAh Battery:
  • Full Power: Approximately 1.2 hours
  • Half Power: Approximately 2.4 hours
  • Quarter Power: Approximately 4.8 hours
  • Flash & SOS Modes: 48+ hours

Use Cases

• Primary light for recreational night diving
• Backup light for technical or overhead environments
• Inspecting wrecks, caves, and reef structures
• Pointing out marine life from a distance
• Emergency signaling on the surface or underwater
• General-purpose underwater flashlight

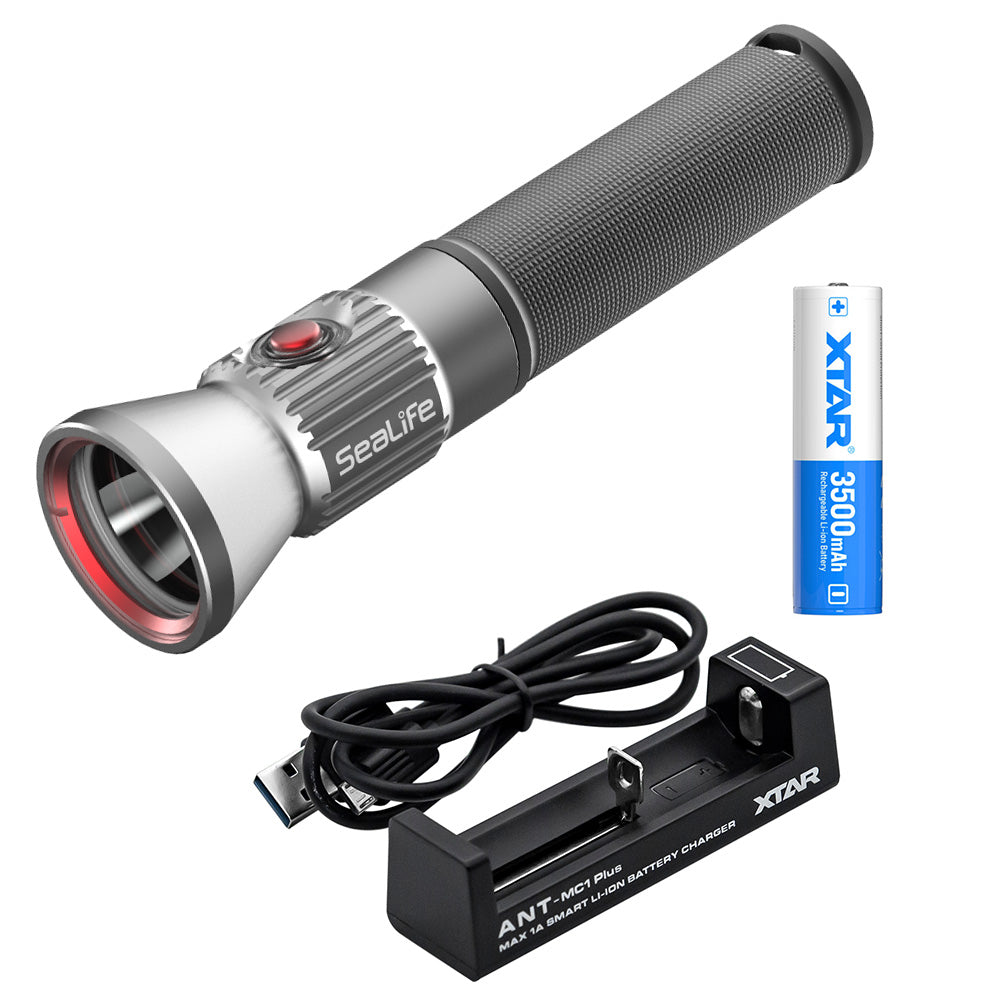

What's Included

• SeaLife Sea Dragon Mini 1600S Dive Light
• Rechargeable 3500mAh 18650 Lithium-Ion Battery
• USB Battery Charger
• Safety Wrist Lanyard with BCD Clip
• Two Spare Silicone O-rings
• Silicone O-ring Lubricant
• Owner's Documentation

Not Included

• Optional 4000mAh rechargeable battery
• YS Mount Adapter (SL98104)
• Charging wall adapter

FAQs

Is this a photo/video light?
No. The Mini 1600S is designed as a dive flashlight with a narrow beam for long-range visibility. It is not intended to replace a wide-beam underwater photo or video light.

Can it be used as a primary dive light?
Yes. Its 1,600-lumen output makes it an excellent primary light for recreational night dives and an ideal backup light for more advanced diving.

What batteries can I use?
Use only protected button-top 18650 lithium-ion rechargeable batteries with a minimum capacity of 3500mAh and a minimum 3.5A discharge current. Do not use CR123 batteries or flat-top 18650 batteries.

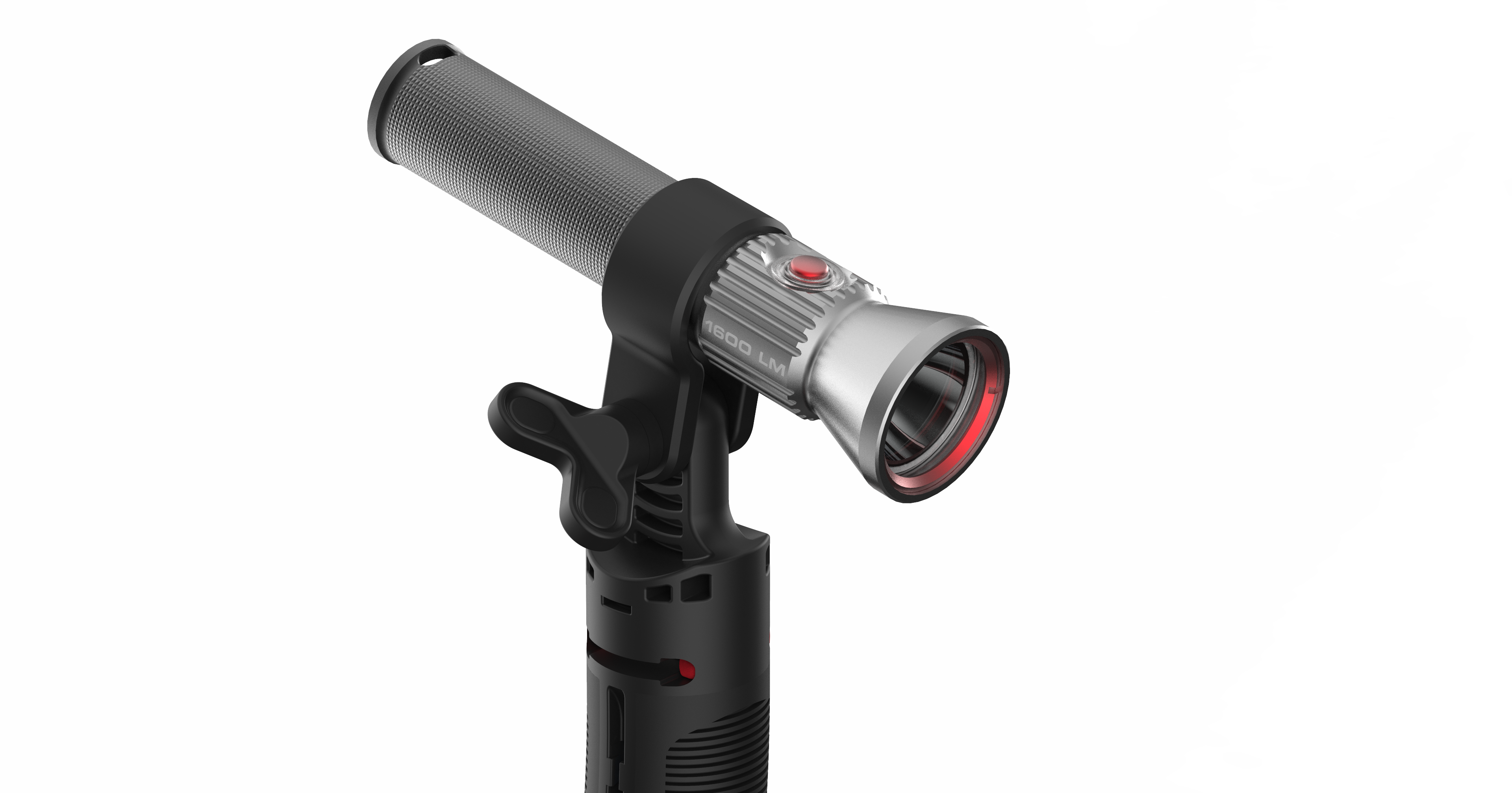

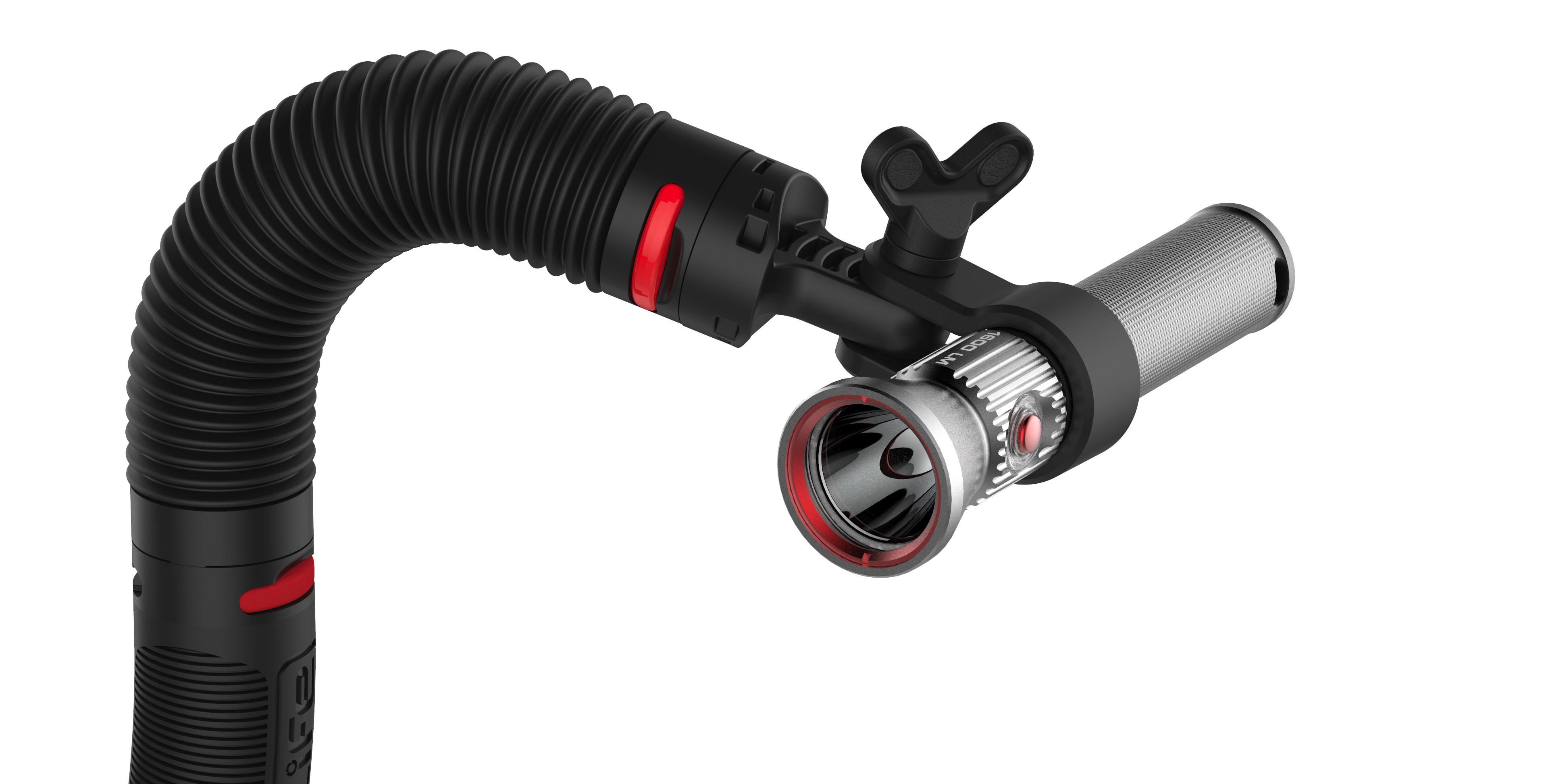

Can I mount this light to an underwater camera tray?
Yes. An optional SeaLife YS Mount Adapter (SL98104), sold separately, allows the light to be mounted to compatible underwater imaging systems.

Care & Maintenance

After each dive, rinse the light thoroughly in fresh water while operating the power button several times to flush away salt and debris. Allow the light to dry completely before opening the battery compartment. Inspect and lightly lubricate the dual O-rings regularly, recharge the battery after use, and store the light in a cool, dry location. Always use compatible protected button-top 18650 batteries that meet SeaLife's specifications.

Expert Insight

With its powerful 1,600-lumen output and extremely focused beam, the Sea Dragon Mini 1600S is an outstanding dive flashlight for divers who want maximum brightness in a compact package. It excels at penetrating dark water, illuminating distant subjects, and communicating with dive buddies. Its rugged aluminum construction, long runtime, and rechargeable power system make it an excellent choice for recreational, advanced, and travel divers alike.
