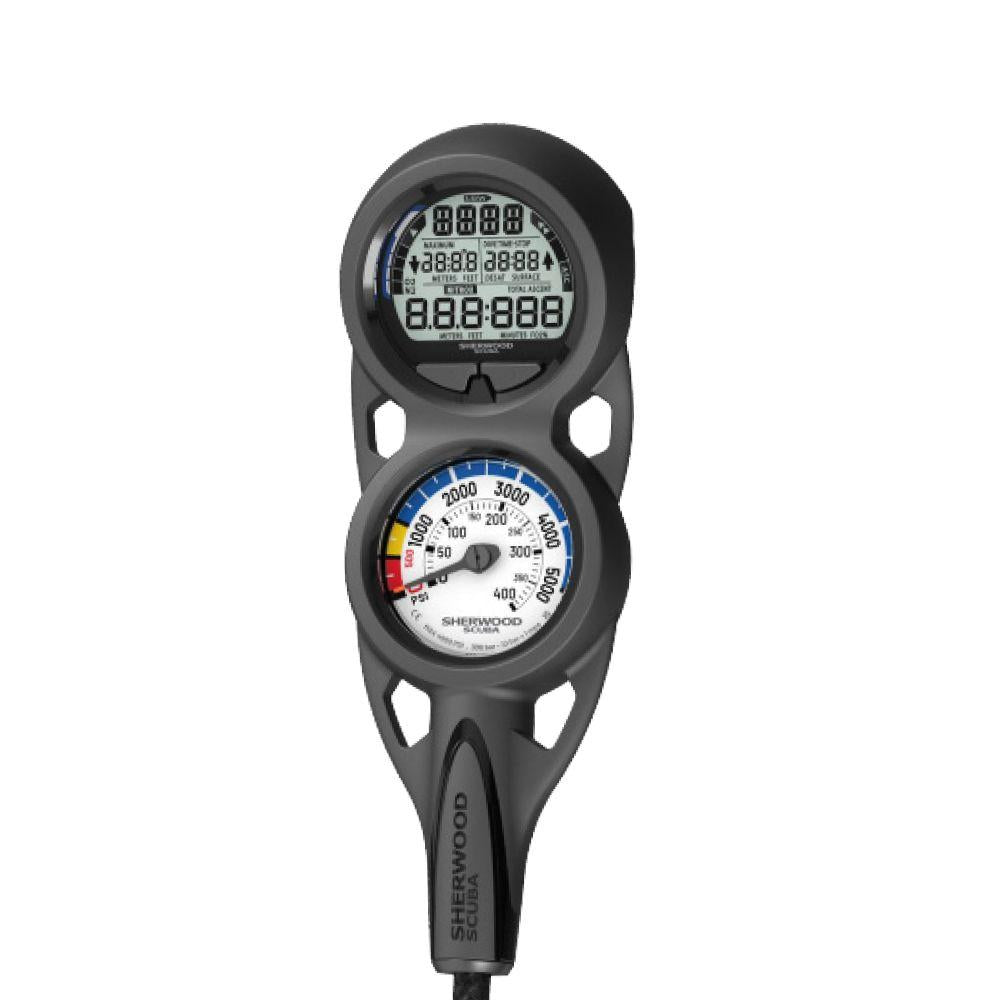

Sherwood Logic+ 3-Gauge Navigational Dive Computer Console

Best For

• Recreational scuba diving
• Divers who prefer a console-mounted dive computer
• Training and rental applications
• Divers who want pressure, navigation, and computer data in one console
• Divers looking for a dependable backup computer system

Key Features

• 3-Gauge Navigational Console: Combines the Logic+ dive computer with a pressure gauge and compass.
• Air, Nitrox & Gauge Modes: Supports common recreational diving configurations and dedicated gauge use.
• Two-Button Operation: Straightforward controls make settings and menus easier to navigate.
• Pressure Gauge: Provides continuous cylinder-pressure information as part of the integrated console.

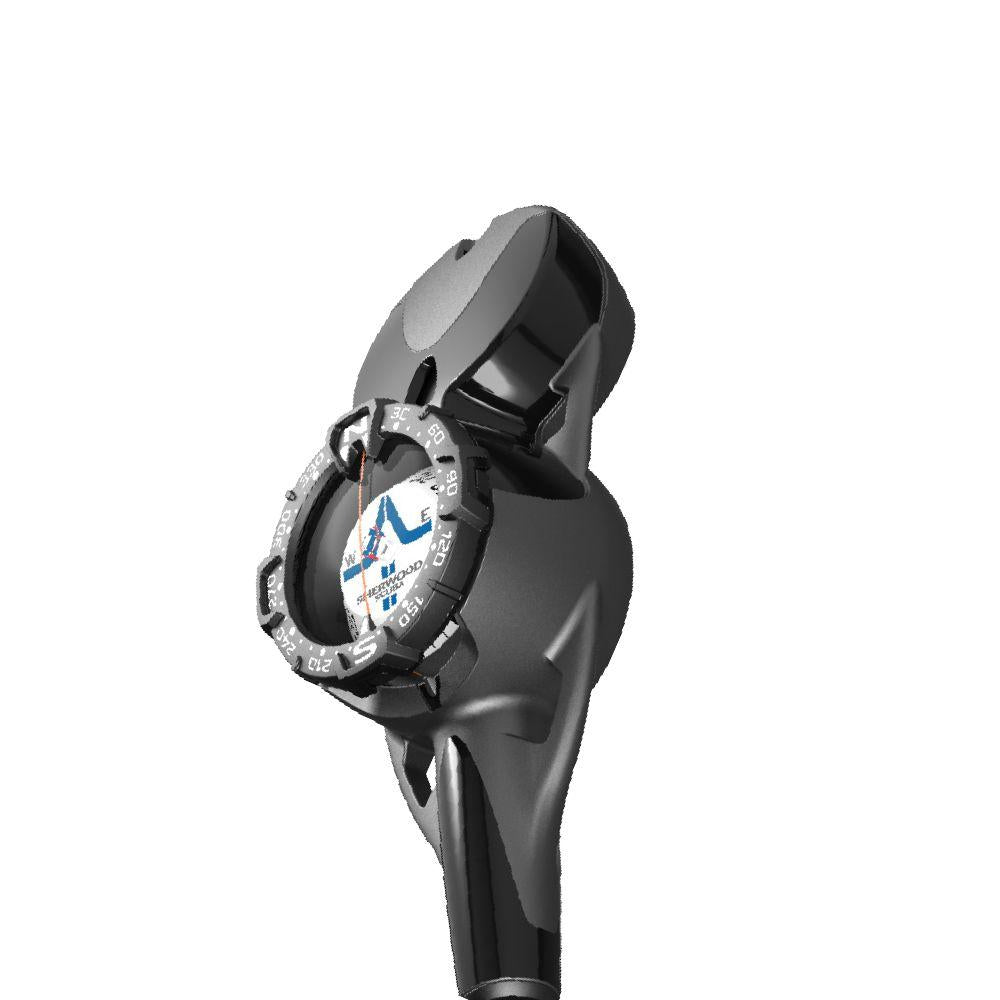

• Integrated Compass: Adds underwater navigation capability without requiring a separate wrist compass.
• Flex Hose: Flexible high-pressure hose makes the console easier to position and read during a dive.
• Audible & Visual Alarms: Diver-selectable alarms provide additional notification of important dive conditions.
• Depth Alarm: Allows the diver to set an alert for maximum planned depth.
• Altitude & Temperature Display: Provides additional environmental information during dive use.
• Selectable Sampling Rate: Dive-profile recording can be set to 15, 30, 45, or 60-second intervals.
• Backlight: Improves display visibility in low-light diving conditions.
• Wireless Synchronization: Supports wireless dive-data download and synchronization with a compatible app.
• User-Replaceable Battery: Uses a replaceable CR2450 battery.

Specifications

• Brand: Sherwood
• Model: Logic+
• Manufacturer Part Number: CC3710F
• Product Type: 3-Gauge Dive Computer Console
• Operating Modes: Air, Nitrox, Gauge
• Display Units: Imperial or Metric
• Profile Sampling Rates: 15, 30, 45, or 60 Seconds
• Alarms: Audible and Visual, Diver Selectable
• Lighting: Backlight
• Battery: CR2450, User Replaceable
• Console Instruments: Dive Computer, Pressure Gauge & Compass
• Hose: Flex High-Pressure Hose
• UPC: 728633438297

What's Included

• Sherwood Logic+ Dive Computer
• Console Pressure Gauge
• Console Compass
• Console Boot
• Flex High-Pressure Hose

FAQs

Does the Sherwood Logic+ support Nitrox?
Yes. The Logic+ supports Air, Nitrox, and Gauge operating modes.

Does this console include a pressure gauge?
Yes. This is the three-gauge navigational configuration and includes the dive computer, pressure gauge, and compass.

Does it include a compass?
Yes. An integrated compass is included for underwater navigation.

Can the battery be replaced by the user?
Yes. The Logic+ uses a replaceable CR2450 battery.

Can dive information be downloaded?
Yes. The computer supports wireless synchronization and downloadable dive data through a compatible app.

Is this a wrist-mounted computer?
No. CC3710F is the three-gauge console version, combining the computer with a pressure gauge and compass.
